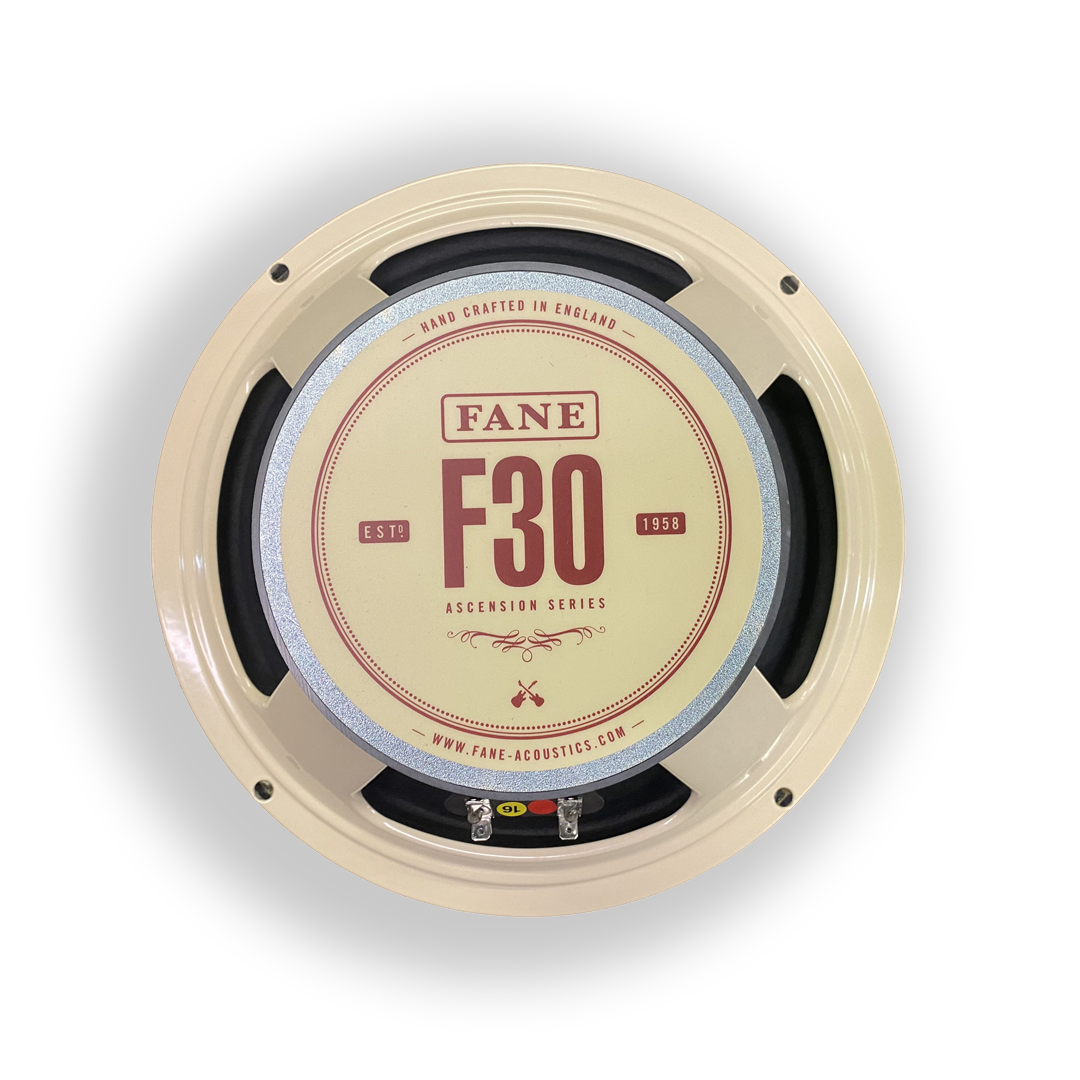

The Ascension F30 is a 30-watt, ceramic magnet guitar speaker. Suitable for reproducing both American and British type sounds, it’s perfect for players seeking vintage rock tones in abundance. While remaining faithful to the Fane Ascension series tonal character, the F30 is voiced with a strong, tight crunch and low-end presence that offers powerful low-mids. It cuts through the mix with an attacking upper mid-range and a forward, rich, and open alnico-like detailed top end. When played clean, tones are detailed and articulate.

The F30 can be used in 1×12 low-powered amps or in multiples for 2×12 or 4×12 medium to high-power, high gain amps.

Specifications:

• Series: Ascension

• Nominal Chassis Diameter: 12” / 304.8 mm

• Power Rating (AES): 30 Watts

• Frequency Range: 75Hz – 5kHz

• Impedance: 8 / 16 Ω

• Sensitivity: 100 dB

• Magnet Weight: 1.7 Kg / 59.97 oz

• Magnetic Gap Depth: 8 mm / 0.31”

• Flux Density: 1.4 Tesla

• Coil Winding Height: 10.7 mm / 0.42”

• Voice Coil Diameter: 44.45 mm / 1.75”

• Voice Coil Material: Copper

• Former Material: Paper

• Magnet Material: Ceramic

• Chassis Material: Pressed Steel

• Cone Material: Paper

• Front Gasket Material: Foam

• Surround / Edge Termination: Paper

• Dust Dome: Fabric

• Connectors: Solder Tabs

• Overall Diameter: 309 mm / 12.17”

• Flange Height: 5 mm / 0.20”

• Overall Depth: 130 mm / 5.12”

• Magnet Structure Diameter: 152 mm / 5.98”

• Gasket(s) Supplied: Front & Rear

• Baffle Cut-out Diameter: 284 mm / 11.18”

• Mounting Hole Information: 4 x ø8mm on 297 mm PCD

• Net Weight: 4.85 Kg / 10.69 lb

Availability:

• 8 ohm and 16 ohm versions in stock
